Hot Dip Galvanized Welded Wire Mesh

Hot dip galvanized welded wire mesh is made of high quality low carbon steel wire through automatic digital controlled welding equipments. It is welded with plain steel wire, then hot dipped galvanizing after welding. The finished products are level and flat with sturdy structure, it has well erosion-resisting and rustproof properties.
Applications:
It is very popular in breeding industry: Can be made into various animal cages or fences for breeding with its excellent anti-corrosion property. The zinc coating offers a kind of decorative outlook with its flat surface.
With first-class anti-corrosion property, it is widely used in mine sieving industries as sieving screen. The low carbon steel wire for making of hot-dipped welded wire mesh offers flexibility that can be made in many further fabrication applications.
Digital Controlled Machines & Well-Trained Staff:
Our digital controlled welding machines and our well-trained workers ensure the level and flat mesh with sturdy structure, which ensure the welded wire mesh products from our factory are the best available in China.
Zinc Coating Line:
We have Hot Dip Galvanizing Line for welded wire mesh in rolls and Hot Dip Galvanizing Tank for welded wire mesh panels. By using 99.0% pure zinc, the procedure of hot dip galvanizing after welding makes the welds is completely protected from the abusive environment, and moreover, it makes the welds stronger

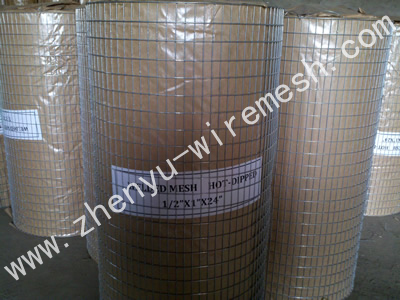

Hot Dip Galvanized welded wire mesh
Roll Width: 24inch, 36inch, 1Metre, 48inch, 72inch, or 84inch
Roll Length: 100feet or 150feet
Note: other roll width or roll length can be made according to request

Mesh Size Wire Gauge Diameter
In MM In Inch BWG No. MM
6.4mm 1/4Inch BWG24-22 0.56mm- 0.71mm
9.5mm 3/8Inch BWG23-19 0.64mm - 1.07mm
12.7mm 1/2Inch BWG22-16 0.71mm - 1.65mm
15.9mm 5/8Inch BWG21-16 0.81mm - 1.65mm
19.1mm 3/4Inch BWG21-16 0.81mm - 1.65mm
25.4x 12.7mm 1 x 1/2Inch BWG21-16 0.81mm - 1.65mm
25.4mm 1Inch BWG21-14 0.81mm - 2.11mm
38.1mm 1 1/2Inch BWG19-14 1.07mm - 2.11mm
25.4mm x 50.8mm 1 x 2Inch BWG17-14 1.47mm - 2.11mm
50.8mm 2Inch BWG16-12 1.65mm - 2.77mm
50.8mm to 305mm 2 to 12Inch At Request
